Leírás és Paraméterek

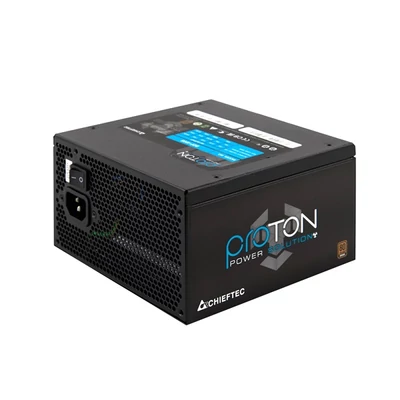

| Model | PROTON 500W |
|---|---|
| Article no. | BDF-500S |
| EAN code | 4710713231269 |
| Weight (without/with package) | 1.55kg / 1.90kg |
| AC Input | 115-230V / 10A |
| Frequency | 50 - 60Hz |
| +5V | 18A |
| +3,3V | 18A |
| +5V & +3,3V combined | 90W |
| +12V1 | 41.68A |
| +12V2 | - |
| +12V1, +12V2 combined | 500W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 500W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 2 |
| SATA | 6 |
| MOLEX | 3 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS (4+4) | 550 |
| 8 PIN PCIe (6+2) | 450/150 |
| SATA | 2x 400/150/150 |
| MOLEX | 400/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | 80+Bronze |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC |
| Fan | 120mm silent fan |
| Security | AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
| Warranty | 24 Months |
| Gyártó | CHIEFTEC |
| Hűtés típusa | Low Noise (14cm) |
| Teljesítmény | 500 |
