Leírás és Paraméterek
Specification

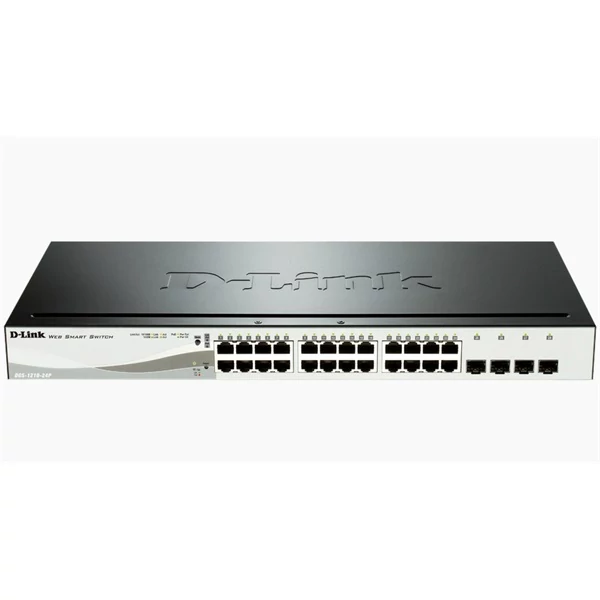

| D-Link Web Smart DGS-1210-24P - switch - 24 ports - Managed - rack-mountable | |
|---|---|
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 193 W |
| Performance | Switching capacity: 56 Gbps ¦ Forwarding performance: 41.7 Mpps |
| MAC Address Table Size | 16K entries |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI |
| Features | Flow control, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Safeguard Engine, reset button, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, LLDP support, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 44.1 cm x 20.99 cm x 4.4 cm |
| Weight | 2.28 kg |
Extended Specification
| General | |
|---|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at |
| Device Type | Switch - 24 ports - Managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | Flow control, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Safeguard Engine, reset button, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, LLDP support, Link Aggregation Control Protocol (LACP), DHCP client, Energy Efficient Ethernet |
| MAC Address Table Size | 16K entries |
| Performance | Switching capacity: 56 Gbps ¦ Forwarding performance: 41.7 Mpps |
| PoE Budget | 193 W |
| Ports | 12 x 10/100/1000 + 12 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI |
| Status Indicators | Port transmission speed, power, PoE, link/activity, fan |
| Subtype | Gigabit Ethernet |
| Dimensions & Weight | |
|---|---|
| Depth | 20.99 cm |
| Height | 4.4 cm |
| Weight | 2.28 kg |
| Width | 44.1 cm |
| Environmental Parameters | |
|---|---|
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -5 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 12 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 12 x 1000Base-T RJ-45 ¦ 4 x SFP (mini-GBIC) |
| Miscellaneous | |
|---|---|
| Compliant Standards | FCC Class A certified, C-Tick, BSMI, cUL, ICES-003, VCCI Class A |
| Power | |
|---|---|
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Gyártó | DLINK |
| Menedzselhető | Van |
| Menedzselhetőség | Teljes |
| Port típusa | 1Gb Fiber |
| Portok száma | 24 |
| Rack-be szerelhető | Van |
| SFP port | 4 |
| Switch típus | Fixed port |
