Feature
Product Description

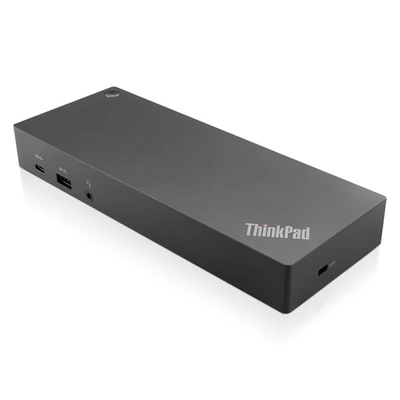

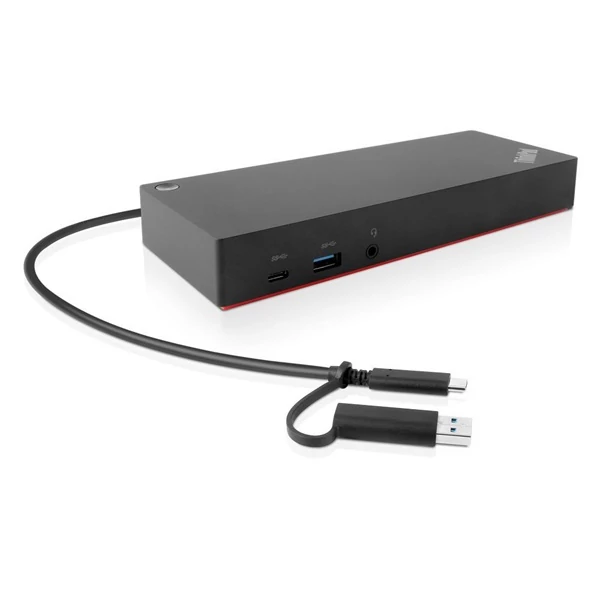

- The ThinkPad Hybrid USB-C with USB-A dock is a productivity solution for any USB-C or USB-A laptop, including non-Lenovo laptops from Dell, HP, and Apple, providing power, display, and port expansion in any mixed OS environment (Win10, Win 11, macOS 13.0, macOS 14.0, ubuntu 22.04, ChromeOS). Featuring enterprise-class manageability, like PXE boot and MAC address pass-through on select ThinkPad notebooks, the ThinkPad Hybrid USB-C with USB-A docking station offers USB port expansion and includes a USB-C to USB-A adapter to provide port replication to non USB-C notebooks. The ThinkPad Hybrid dock also supports dual monitor setups, up to dual UHD 4K resolution, and rapid charging to notebooks.
- Windows:
- Gen 2023: HP: Elite 840 G10, Elite Dragonfly G4, Elite 640 G10, Pro 440 G10, Elite 845 G10, Dell: Latitude 9330, Latitude 9430, Latitude 7440, Latitude 5440, XPS 13 Plus 9320 Intel®;
- Gen 2022: HP: Elite Dragonfly G3; Dell: Latitude 7330 XPS 13 9310;
- MacOS:
- Gen 2023: MacBook Pro 13'' 2022 M2, MacBook Pro 13'' M1, MacBook Air 13 2022 M2;
- Gen 2022: MacBook Air M1
- Chrome OS:
- Gen 2023: Dell Latitude 5430 Chromebook, Acer Chromebook Spin 714;
- Gen 2022: Acer Chromebook Vero 514;
- Gen 2020: Samsung Galaxy Chromebook, Acer Chromebook Spin 311, Lenovo Chromebook C340-11;
- Gen 2019: HP Chromebook x360 14b, ASUS Chromebook Flip C434
- HEADNOTE: The non-Lenovo notebooks marked as compatible have been internally tested and verified to work and support display, power delivery and port expansion. Any changes to notebook hardware or software, may result in changes to functionality or compatibility. In the event of this impacting you experience, please reach out to Lenovo support at https://pcsupport.lenovo.com/servicerequest.
Top Features
- Enterprise-class capabilities with PXE boot, Wake-On-Lan, and MAC address pass-through
- Supports ThinkPad RapidCharge
- Connects with up to dual UHD 4K display with DP and HDMI ports
- Delivers up to 10Gbps data transfer speed on 3 x USB 3.1 ports
More Information
Tech Specs
Supported OS | Windows 11, Windows 10, Windows 7, macOS 13.0, macOS 14.0, ubuntu 22.04, ChromeOS |
Warranty Type | CRU |
Warranty Period | 3 Years |
EAN | 0191999788403 |
UPC | 191999788403 |
Maximum Operating Temperature | 35 degrees Celsius (95 degrees Fahrenheit) |
Minimum Operating Temperature | 0 degrees Celsius (32 degrees Fahrenheit) |
Package Type | Brown box |
Shipment Group | ThinkPad Hybrid USB-C with USB-A Dock ThinkPad Slim-tip 135 W AC power adapter 1m USB-C Cable with USB-A Adapter Power cord Product information, safety and warranty poster |
Product Weight | 480 g (1.05 lbs) |
Driver Needed | Preloaded in select ThinkPad laptops |
Hardware Requirements | Machine with full function USB-C port or USB 3.0 Port |
Agency Approvals | BSMI, CB, CE, cULus, EAC, FCC/ICES, Israel SII, KCC, LoA, NOM, RCM, Serbia Kvalitet, TUV Mark, Ukraine DoC, VCCI |
Color | Black |
Power Plug | Shuko/European Standard Plug Type C |
Power Button | Yes |
Output Power | 90 W |
Power Delivery | Yes |
Input Power | 135 W |
Charging Port | ThinkPad Slim-tip Port |
Maximum Resolution/Refresh Rate | DisplayPort: 3840 x 2160 @ 60 Hz HDMI: 3840 x 2160 @ 60 Hz Bundle DisplayPort 1 & DisplayPort 2 to the monitor: 5120 x 2880 @ 60 Hz "Maximum resolution" refers to what can be supported by the dock. Actual resolution will vary by laptop. |
Max Number of External Monitors | 2 |
Audio Ports | 1 x 3.5 mm Stereo/Mic Combo Port |
USB Ports | 1 x USB-C (Data, 5V/3A power) 3 x USB 3.1 Gen2 (10 Gbps, 1 always-on) 2 x USB 2.0 |
Video Ports | 2 x DisplayPort 1.2 2 x HDMI |
Brand | ThinkPad |
Típus | Dokkoló |
