Product Description

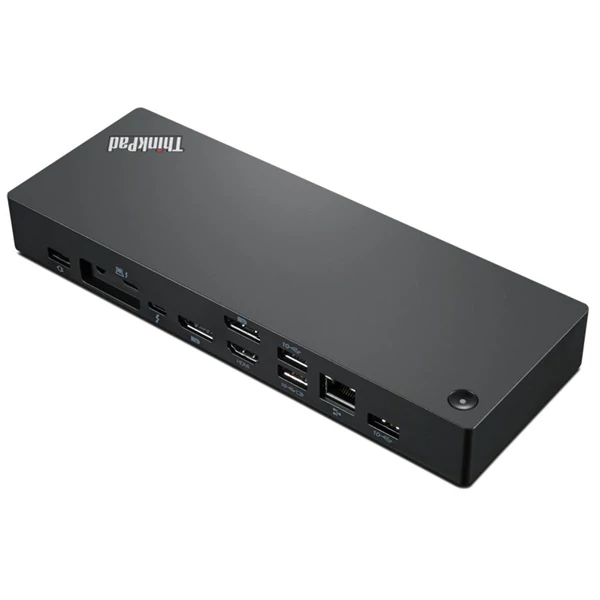

Enterprise-Grade Universal Thunderbolt™ 4 Docking Experience: ThinkPad Universal Thunderbolt 4 Dock delivers reliable and consistent industry leading video, data and power connectivity in a Windows based mixed-PC environment. ; Maximize Your Productivity: Expand your horizon with versatile 8K display support or multiple 4K displays support, silent firmware upgrades, VPro/AMT support and transfer data at lightning fast 40Gbps. ; The ThinkPad Universal Thunderbolt 4 is future-proof and fully loaded to take your productivity, efficiency and creativity to the peak.
Top Features
- The ThinkPad Universal Thunderbolt™ 4 Dock supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support, silent firmware upgrades, vPro/AMT Pass through support, and data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)
More Information
Tech Specs
| USB Ports | 4 x USB-A 3.2 Gen 2 (1 always on) 1 x USB-C 3.2 Gen 2 |
| EAN | 0195348677325 |
| Supported OS | Win10 64 bit, Win 11 64 bit |
| Minimum Relative Humidity (%) | 5% |
| Maximum Relative Humidity (%) | 95% |
| JAN | 4580551376145 |
| UPC | 195348677325 |
| Warranty Type | CRU |
| Warranty Period | 3 years |
| Maximum Operating Temperature | 40 celsius |
| Minimum Operating Temperature | 0 celsius |
| Packed Weight | 1.2Kg |
| Packed Dimensions (L x D x H) | 270*195*85mm |
| Package Type | brown box |
| Shipment Group | ThinkPad Universal TBT 4 Dock 135W AC Power adapter Power cord Setup poster&Warranty Poster Standard TBT 4 Cable |

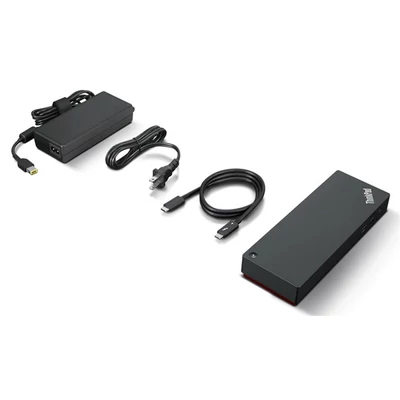

| Included Accessory | 135W adapter, 1x power cord, standard Thunderbolt cable |
| Product Weight | 0.45Kg |
| Height | 30mm |
| Depth | 80mm |
| Length | 220mm |
| Driver Needed | Yes |
| Hardware Requirements | Host with USB-C/Thunderbolt port |
| Agency Approvals | CE-EMC, TUV Mark,KCC,Serbia Kvalitet, CU EAC |
| Color | Black/Red |
| Power Plug | Slim Tip |
| Power Button | Yes |
| Output Power | Max 100W |
| Power Delivery | Yes |
| Input Power | 20V 6.75A |
| Charging Port | DC-IN |
| Maximum Resolution/Refresh Rate | 1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz |
| Max Number of External Monitors | 4 |
| Physical Security Feature | 1* NanoSaver lock slot 1*MicroSaver lock slot |
| Ethernet | 1* Gigabit Ethernet |
| Audio Ports | 1* 3.5mm Audio combo Jack |

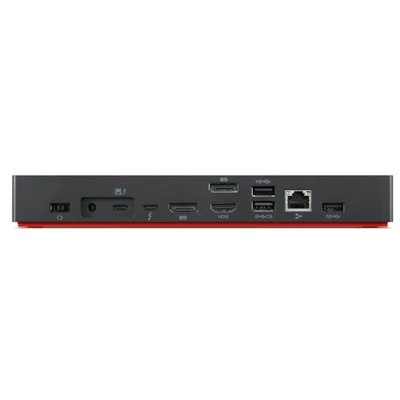

| Video Ports | 1* HDMI 2.1 2* DP 1.4 |
| Thunderbolt Port | 1* Thunderbolt Port - for Host connect 1* Thunderbolt Port - for Device connect |
| Brand | ThinkPad |
Compatibility
Operating System
OS Independent
Compatible Machines
| Description | ID | Footnote |
| IdeaPad S500 Series-IdeaPad Pro 5 14AHP9 | 83D3 | P1. PXE boot supported |
| IdeaPad S500 Series-IdeaPad Pro 5 14IMH9 | 83D2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| IdeaPad S500 Series-IdeaPad Slim 5 15IRH9R | 83J6 | P1. PXE boot supported |
| L15 G2-20X4 - L15 Gen 2 | 20X4 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| Lenovo Flex 7 Series-Lenovo Flex 7 14IAU7 | 82VC | |
| Lenovo Flex 7 Series-Lenovo Flex 7 14IRU8 | 82Y2 | |
| Lenovo K14 Series-K14 G2 | 21G0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21G1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Lenovo S700 Series-Lenovo Slim 7 14IMH9 | 83D8 | |
| P14s 2nd Generation-20VY MT 2021 | 20VY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y1 - P14s AMD Gen 1 | 20Y1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| P14s AMD G1-20Y2 - P14s AMD Gen 1 | 20Y2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkBook Plus Series-ThinkBook Plus G3 IAP | 21EL | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Plus Series-ThinkBook Plus G4 IRU | 21JJ | |
| ThinkBook Series (Perfomance)-ThinkBook 14p G3 ARH | 21EJ | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 15p G2 ITH | 21B1 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 16p G2 ACH | 20YM | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 16p G3 ARH | 21EK | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 16p G4 IRH | 21J8 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-ThinkBook 16p G5 IRX | 21N5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| ThinkBook Series (Perfomance)-ThinkBook 16p NX ARH | 21EV | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Series (Perfomance)-family not used | 21EU | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| ThinkBook Slim Series-ThinkBook 13s G4 ARB | 21AS | |
| ThinkBook Slim Series-ThinkBook 13s G4 IAP | 21AR | |
| ThinkBook Slim Series-ThinkBook 13s G5 IRP | 21JA | |
| ThinkBook X series-ThinkBook 13x G2 IAP | 21AT | |
| ThinkBook Yoga Series-ThinkBook 14 2-in-1 G4 IML | 21MX | P1. PXE boot supported |
| ThinkBook Yoga Series-ThinkBook 14s Yoga G2 IAP | 21DM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkBook Yoga Series-ThinkBook 14s Yoga G3 IRU | 21JG | |
| ThinkCentre M Traditional Desktop Series-NEC Canopus-IR-LV | 12H5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad E14 Series-E14 AMD G5 | 21JR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 G4 | 21E3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E14 Series-E14 G5 | 21JK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E15 Series-E15 G4 | 21E6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E16 series-E16 AMD G1 | 21JT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad E16 series-E16 G1 | 21JN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 2-in-1 G5 | 21LM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam | 20R3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20R4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L13 Series-L13 Clam 2nd Generation | 20VH | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| 20VJ | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through | |
| ThinkPad L13 Series-L13 Clam AMD G2 | 21AB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam AMD G3 | 21B9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam AMD G4 | 21FN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam G3 | 21B3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21B4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam G4 | 21FG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Clam G5 | 21LB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga | 20R5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20R6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L13 Series-L13 Yoga 2nd Generation | 20VK | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| 20VL | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G2 | 21AD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G3 | 21BB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga AMD G4 | 21FR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga G3 | 21B5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21B6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L13 Series-L13 Yoga G4 | 21FJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21FK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G1 | 20U5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U6 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L14 Series-L14 AMD G2 | 20X5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20X6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G3 | 21C5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G4 | 21H5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 AMD G5 | 21L5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G2 | 20X1 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| 20X2 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through | |
| ThinkPad L14 Series-L14 G3 | 21C1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G4 | 21H1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-L14 G5 | 21L1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L14 Series-ThinkPad L14 | 20U1 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U2 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L15 Series-L15 AMD G1 | 20U7 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U8 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L15 Series-L15 AMD G2 | 20X7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20X8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 AMD G3 | 21C7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 AMD G4 | 21H7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 G2 | 20X3 | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| ThinkPad L15 Series-L15 G3 | 21C3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21C4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-L15 G4 | 21H3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21H4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L15 Series-ThinkPad L15 | 20U3 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| 20U4 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. | |
| ThinkPad L16 Series-L16 AMD G1 | 21L7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad L16 Series-L16 G1 | 21L3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21L4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P1 Series-P1 G5 | 21DC | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21DD | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P1 Series-P1 G6 | 21FV | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FW | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P1 Series-P1 G7 | 21KV | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21KW | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P14 Series-P14s 2nd Generation | 20VX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad P14 Series-P14s AMD G2 | 21A0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21A1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G3 | 21J5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21J6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G4 | 21K5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G5 | 21ME | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s AMD G6 | 21QL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21RV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21RW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G3 | 21AK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G4 | 21HF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P14 Series-P14s G5 | 21G2 | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21G3 | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P15 Series-P15s 2nd Generation | 20W6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P15 Series-P15v AMD G3 | 21EM | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21EN | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-P15v G3 | 21D8 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21D9 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P15 Series-T15p G3 | 21DA | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21DB | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16 G1 | 21D6 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21D7 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16 G2 | 21FA | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FB | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16s AMD G1 | 21CK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s AMD G2 | 21K9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s AMD G4 | 21QR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21RX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21RY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad P16 Series-P16s G1 | 21BT | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21BU | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16s G2 | 21HK | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21HL | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16s G3 | 21KS | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21KT | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad P16 Series-P16v AMD G1 | 21FE | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FF | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16v G1 | 21FC | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21FD | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad P16 Series-P16v G2 | 21KX | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21KY | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad T14 Series-T14 2nd Generation | 20W0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20W2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20W3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G1 | 20UD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G2 | 20XK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad T14 Series-T14 AMD G3 | 21CF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G4 | 21K3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G5 | 21MC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 AMD G6 | 21QJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G3 | 21AH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G4 | 21HD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14 G5 | 21ML | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21MM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s 2nd Generation | 20WM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20WN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G1 | 20UH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G2 | 20XF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G4 | 21F8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21F9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s AMD G6 | 21M1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21M2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G3 | 21BR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G4 | 21F6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21F7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G5 | 21LS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s G6 | 21QX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-T14s Snapdragon G6 | 21N1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21N2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-ThinkPad T14 | 20S0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20S1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20S2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 20S3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T14 Series-ThinkPad T14s | 20T0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20T1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-T15 2nd Generation | 20W4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W5 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T15 Series-ThinkPad T15 | 20S6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20S7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 AMD G1 | 21CH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 AMD G2 | 21K7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 AMD G4 | 21QN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 G1 | 21BV | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21BW | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad T16 Series-T16 G2 | 21HH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad T16 Series-T16 G3 | 21MN | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. |
| 21MQ | PXE boot supported. Wake On LAN from Hibernation, Power-Off mode.MAC address pass through. Must attach notebook AC power adapter to system directly to support rapid power charging if adapter included with the notebook is 135W. | |
| ThinkPad X1 series-X1 2-in-1 G10 | 21NU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21NV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21Q0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21Q1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 2-in-1 G9 | 21KE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon 8th Generation | 20U9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon 9th Generation | 20XW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G10 | 21CB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G11 | 21HM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G12 | 21KC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21KD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Carbon G13 | 21NS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21NT | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21NX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| 21NY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Extreme G5 | 21DE | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21DF | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad X1 series-X1 Fold 16 G1 | 21ES | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21ET | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano | 20UN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano G2 | 21E8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21E9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Nano G3 | 21K1 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21K2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Titanium G1 | 20QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga 5th Generation | 20UB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20UC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga 6th Generation | 20XY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20Y0 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga G7 | 21CD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CE | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X1 series-X1 Yoga G8 | 21HQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21HR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X12 Series-X12 Detachable 1st Generation | 20UV | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through |
| 20UW | Please connect the dock to the Thunderbolt 4 port on the system side to have full function display support. P1W45M1. PXE boot supported. Wake On LAN from Hibernation, Power-Off mode. MAC address pass through | |
| ThinkPad X12 Series-X12 Detachable G2 | 21LK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 2-in-1 G5 | 21LW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G1 | 20UF | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| ThinkPad X13 series-X13 AMD G2 | 20XH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20XJ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G3 | 21CM | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21CN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 AMD G4 | 21J3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21J4 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G1 | 20T2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20T3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G2 | 20WK | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20WL | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G3 | 21BN | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BQ | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G4 | 21EX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21EY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 G5 | 21LU | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21LV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga 2nd Generation | 20W8 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 20W9 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga G3 | 21AW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21AX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13 Yoga G4 | 21F2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21F3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X13 series-X13s G1 | 21BX | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21BY | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X9-ThinkPad X9-14 G1 | 21QA | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21QB | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad X9-ThinkPad X9-15 G1 | 21Q6 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21Q7 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z13 Series-Z13 AMD G1 | 21D2 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21D3 | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z13 Series-Z13 AMD G2 | 21JV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21JW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| ThinkPad Z16 Series-Z16 AMD G1 | 21D4 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21D5 | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| ThinkPad Z16 Series-Z16 AMD G2 | 21JX | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 |
| 21JY | Must attach Notebook AC power adapter to system directly to get enough power charging. P1W45M1 | |
| Thinkbook Series-ThinkBook 14 G4 ABA | 21DK | |
| Thinkbook Series-ThinkBook 14 G4 IAP | 21DH | |
| Thinkbook Series-ThinkBook 14 G4+ ARA | 21D0 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 14 G4+ IAP | 21CX | |
| Thinkbook Series-ThinkBook 14 G5 ABP | 21JE | |
| Thinkbook Series-ThinkBook 14 G5 IRL | 21JC | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 14 G6 ABP | 21KJ | |
| Thinkbook Series-ThinkBook 14 G6 IRL | 21KG | |
| Thinkbook Series-ThinkBook 14 G6 IRL Brazil | 21NQ | |
| Thinkbook Series-ThinkBook 14 G6+ IMH | 21LD | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Thinkbook Series-ThinkBook 14 G7 IML | 21MR | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode |
| 21NC | P1W45.PXE boot supported Wake On LAN from Hibernation,Power-Off mode | |
| Thinkbook Series-ThinkBook 14 G8 IRL | 21SG | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21TV | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Thinkbook Series-ThinkBook 15 G4 ABA | 21DL | |
| Thinkbook Series-ThinkBook 15 G4 IAP | 21DJ | |
| Thinkbook Series-ThinkBook 15 G5 ABP | 21JF | |
| Thinkbook Series-ThinkBook 15 G5 IRL | 21JD | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 16 G4+ ARA | 21D1 | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 16 G4+ IAP | 21CY | 430.Must attach Notebook AC power adapter to system directly to get enough power charging. |
| Thinkbook Series-ThinkBook 16 G6 ABP | 21KK | |
| Thinkbook Series-ThinkBook 16 G6 IRL | 21KH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 16 G6 IRL Brazil | 21NR | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| Thinkbook Series-ThinkBook 16 G7 IML | 21MS | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21ND | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Thinkbook Series-ThinkBook 16 G7+ ASP | 21Q5 | PXE boot supported. Wake On LAN from Sleep, Hibernation, or Power-Off mode.MAC address pass through. |
| Thinkbook Series-ThinkBook 16 G8 IRL | 21SH | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through |
| 21TW | P1W45M1. PXE boot supported. Wake On LAN from Hibernation,Power-Off mode.MAC address pass through | |
| Yoga S700 Series-Yoga Pro 7 14ASP9 | 83HN | P1. PXE boot supported |
| Yoga S700 Series-Yoga Pro 7 14IMH9 | 83E2 | |
| Yoga S700 Series-Yoga Slim 7 14IMH9 | 83CV | |
| Yoga S700 Series-Yoga Slim 7 15ILL9 | 83HM | P1. PXE boot supported |
| Típus | Dokkoló |
Vélemények
Erről a termékről még nem érkezett vélemény.
