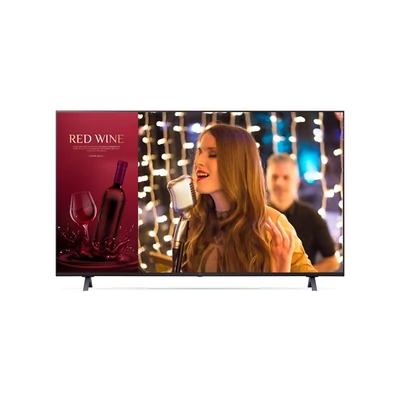

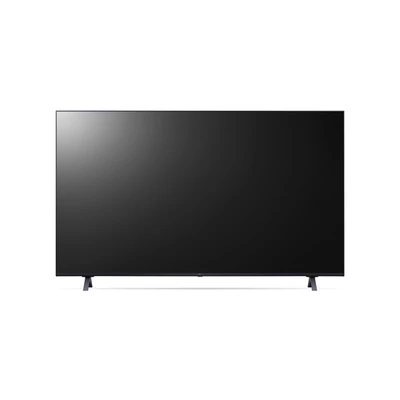

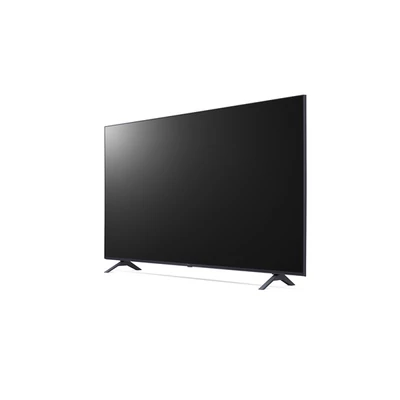

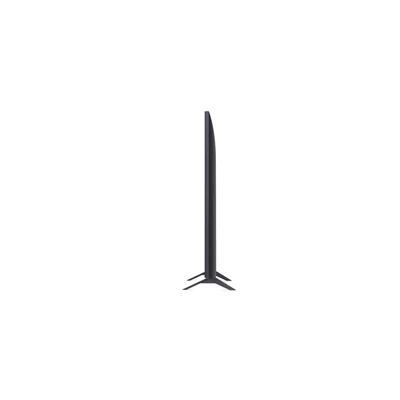

| 55UN640S (EU/CIS)
|
| UHD TV Signage
|
|
|
|
|
|
|
|
|
| Tech Spec
|
|
|
| Design
|
|
|
- Front Color: Ashed Blue
-
Stand Type: 2 pole
.
|
|
|
|
|
| Display
|
|
|
- Inch: 55”
-
Resolution: 3,840 × 2,160 (4K Ultra HD)
.
|
|
|
|
|
| Video
|
|
|
- HDR (Dolby Vision / 10 Pro / HLG): No / Yes / Yes
.
|
|
|
|
|
| Audio
|
|
|
- Audio Output: 20 W
-
LG Sound Sync: Yes
.
|
|
|
|
|
| Broadcasting System
|
|
|
- Digital: DVB-T2 / C / S2
-
Analog (NTSC / SECAM / PAL): SECAM / PAL
-
Teletext (Auto Teletext): Yes
.
|
|
|
|
|
| Smart Function
|
|
|
- webOS22, Web Browser, Mood Display, Wi-Fi, Bluetooth, SoftAP, Screen Share, DIAL, Bluetooth Audio Playback, HDMI-ARC (HDMI2)
.
|
|
|
|
|
| Hospitality Feature
|
|
|
- USB Cloning, WOL, SNMP, Simplink (HDMI-CEC) (1.4), IR Out (RS-232C, HDMI), Multi IR Code, Hotel Mode / PDM / Installer Menu, Welcome Screen (Splash Image), Insert Image, One Channel Map, External Speaker Out, Moving Picture Playback (SD/HD/Plus HD), Port Block, Lock Mode (Limited), RJP (Remote Jack Pack) Compatibility, Energy Saving Mode
.
|
|
|
|
|
| Vertical Function
|
|
|
- Vertical Setup, Fail Over, Play via URL, NTP Server Setting, CISCO Certi. Compatibility (23Y Q3) (TBD), Crestron Certi. Compatibility, DPM (Digital Power Management), Time Scheduler, RTC (Real Time Clock), NTP Sync Timer, BEACON, Embedded CM (Contents Manager), Embedded GM (Group Manager)
.
|
|
|
|
|
| SuperSign SW Compatibility
|
|
|
- Control+ (Free Version), CMS (Premium), LG ConnectedCare
.
|
|
|
|
|
| Dimension
|
|
|
- VESA Compatible: 300 × 300 mm
-
W x H x D / weight (with stand): 1,235 × 772 × 232 mm / 14.2 kg
-
W x H x D / weight (without stand): 1,235 × 715 × 57.5 mm / 14.0 kg
-
W x H x D / weight (Shipping): 1,360 × 810 × 162 mm / 19.0 kg
-
On Bezel Width (L/R/U/B): 12.8 / 12.8 / 12.8 / 19.9 mm
-
Off Bezel Width (L/R/U/B): 6.9 / 6.9 / 6.9 / 18.4 mm
.
|
|
|
|
|
| Power
|
|
|
- Power Supply (Voltage, Hz): AC 100-240 V ~, 50-60 Hz
-
Power Consumption (Typ. / Max.): 128 W / 155 W
-
Standby Power Consumption: Under 0.5 W
.
|
|
|
|
|
| Accessory
|
|
|
- Remote type: S-con
-
Power Cable: 1.5 m / Detached / Straight Type
.
|
|
|
|
|
| Required Listing (Certification)
|
|
|
- Safety: CB, CU TR
-
EMC: CE
-
SDR Grade: G
-
SDR On mode: 79 W
-
HDR Grade: -
-
HDR On mode: 88 W
.
|
|
|
