Leírás és Paraméterek
| Dimensions (W X D X H) |
114x94x26 mm |
|---|---|
| Protocols |
IPv4, IPv6 |
| External Power Supply | 5VDC/0.6A |
| Antenna Type | 2 x 5dBi fixed omni directional antennas |
| Signal Rate |
11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
| Button | RESET |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4 - 2.4835GHz |
| Reception Sensitivity |
270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -77dBm@10% PER 54M: -76dBm@10% PER 11M: -90dBm@8% PER 6M: -92dBm@10% PER 1M: -97dBm@8% PER |
| Interfaces |

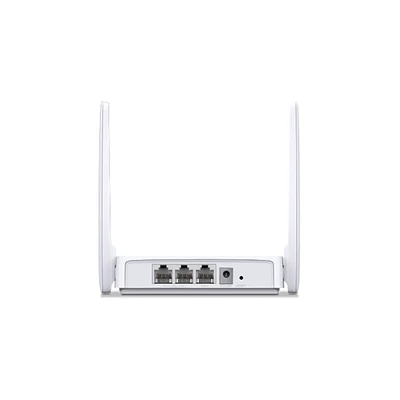

2 10/100Mbps LAN ports 1 10/100Mbps WAN port |
| Certifications | CE, ROHS |
| Package Contents |

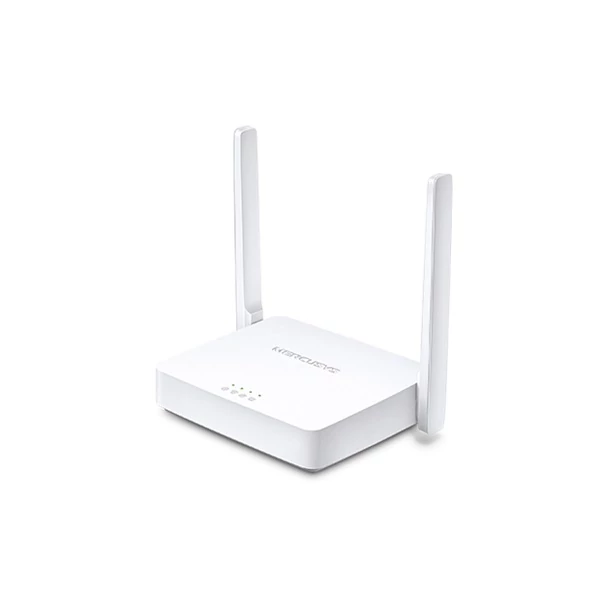

300Mbps Wireless N Router MW301R Power adapter Quick Installation Guide Ethernet cable |
| Environment |
Operating temperature: 0°C ~ 40°C (32°F ~ 104°F) Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing |
| Transmission Power | <20dBm |
| Wireless Security | 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| Wireless Functions | WDS bridge |
| WAN Type | Dynamic IP/Static IP/PPPoE/L2TP/PPTP |
| Management |
Parental Control Access control Local management Remote management |
| DHCP | Server |
| Port Forwarding | Virtual server, UPnP, DMZ |
| Dynamic DNS | DynDNS?NO-IP |
| Firewall Security | IP and MAC address binding |
| Guest Network | 2.4GHz guest network |
| Frekvencia | 2.4 GHz |
| Gyártó | TP-LINK |
| Portok száma | 3 |
| Sebesség | 300 |
| Szabvány | 802.11b, 802.11g, 802.11n |
| Titkosíthatóság | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
