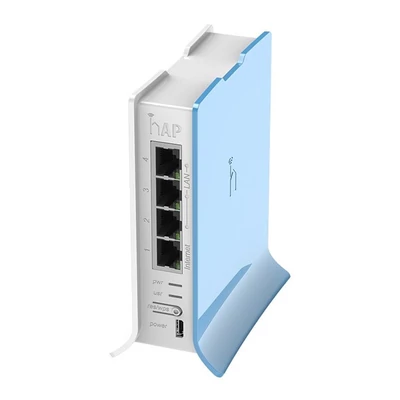

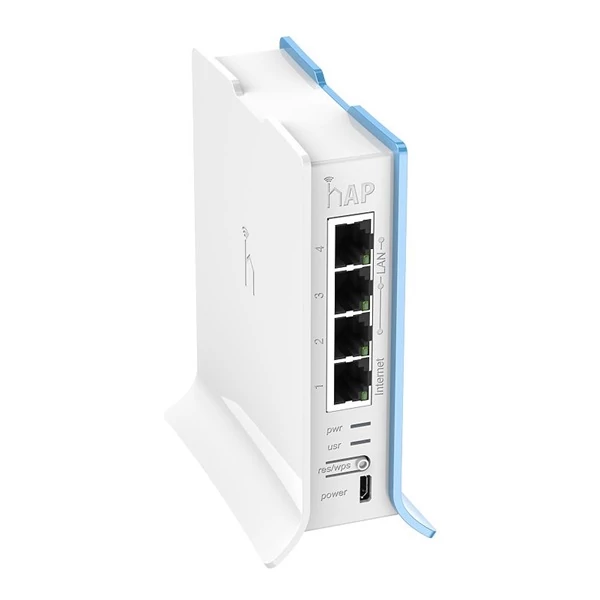

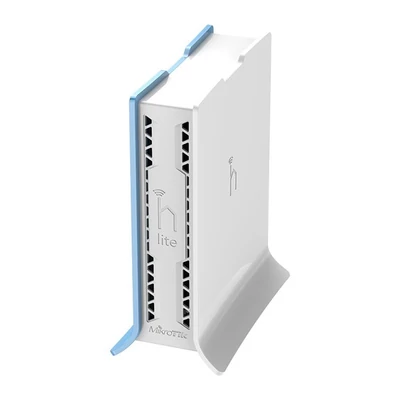

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Specifications
| Details |
| Product code |
RB941-2nD-TC |
| Architecture |
SMIPS |
| CPU |
QCA9533 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
32 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-20°C to 70°C |
| |
|
Powering
| Details |
| MicroUSB input Voltage |
5-5 V |
| Number of DC inputs |
1 (MicroUSB) |
| Max power consumption |
3.5 W |
Wireless
| Details |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
1.5 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
| Details |
| 10/100 Ethernet ports |
4 |
Certification & Approvals
| Details |
| Certification |
FCC, IC |
Wireless specifications
| 2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
| 1MBit/s |
22 |
-96 |
| 11MBit/s |
22 |
-89 |
| 6MBit/s |
20 |
-93 |
| 54MBit/s |
18 |
-74 |
| MCS0 |
20 |
-93 |
| MCS7 |
16 |
-71 |
Included parts
| Frekvencia |
2.4 GHz |
| Gyártó |
MIKROTIK |
| Portok száma |
4 |
| Sebesség |
300 Mbit/s |
| Szabvány |
802.11b, 802.11g, 802.11n |
