UBiQUiTi Vezetékes Router Gateway és Accesspoint DualBand, 1x1Gbit (LAN) + 1x1Gbit (WAN), WiFi6, OpenVPN, Asztali - UX

Overview

Dimensions

98 x 98 x 30 mm (3.6 x 3.6 x 1.2")

UniFi Application Suite

Network

Yes

Managed UniFi Devices

4

Simultaneous Users Connected

50+

Default WAN Ports

(1) GbE RJ45

LAN Ports

(1) GbE RJ45

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Ad Blocking

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax (WiFi 6)

Throughput

5 GHz

2.4 Gbps

2.4 GHz

573.5 Mbps

MIMO

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Antenna Gain

5 GHz

5.15 dBi

2.4 GHz

4 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

3 per Radio (Gateway Mode) 4 per Radio (AP Mode)

Antennas

(2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

Hardware

Max. Power Consumption

10W

Power Method

USB type C (5V DC/3A)

Power Supply

USB type C (5V DC/3A) (Adapter included)

Max. TX Power

5 GHz

25 dBm

2.4 GHz

22 dBm

Supported Voltage Range

100—240V AC

Processor

Dual-core ARM® Cortex®-A53 at 1 GHz

System Memory

1 GB

Weight

302 g (10.7 oz)

Enclosure Material

Polycarbonate

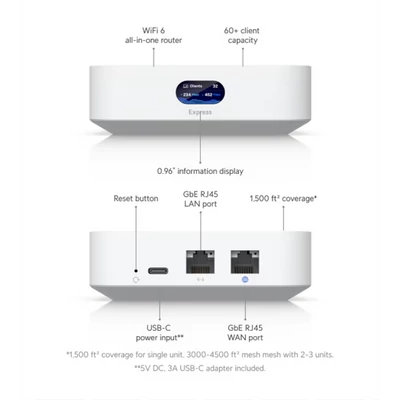

LCM Display

0.96" status display

Management

Ethernet Bluetooth

Ambient Operating Temperature

-10 to 45° C (14 to 113° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset

Software

VLAN

802.1Q

Guest Traffic Isolation

Yes

Application Requirements

UniFi Network

Version 8.0.7 and later
