Leírás és Paraméterek
Description
Product name

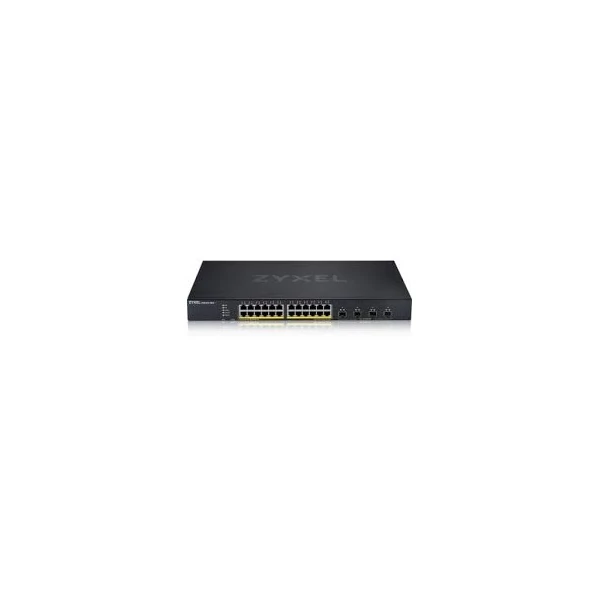

24-port GbE PoE Lite-L3 Smart Managed Switch with 4 10G Uplink
Switch class
Smart Managed
Port Density
Total port count
28
100/1000 Mbps
24
10 Gigabit SFP+
4
PoE
IEEE 802.3at (PoE+)
24
Total PoE budget (watts)
375
Performance
Switching capacity (Gbps)
128
Forwarding rate (Mpps)
95.2
Packet buffer (byte)
1.5 M
MAC address table
16 K
Jumbo frame (byte)
9 K
L3 forwarding table
Max. 512 IPv4 entries;
Max. 512 IPv6 entries
Routing table
32
VLAN routing
Yes
IP interface (IPv4/IPv6)
32/32
Flash/RAM
32 MB/512 MB
Power
Input
100 to 240 V AC, 50/60 Hz
Max. power consumption (watts)
452.6
Min. power consumption (watts)
15.9
Physical Specifications
Dimensions
(WxDxH)(mm/in.)
440 x 270 x 43/17.32 x 10.63 x 1.69
Weight
(kg/lb.)
3.6/7.94
Included accessories
Power cord
Rack mounting kit
Green Features
Energy-Efficient Ethernet
Yes
ESD/Surge Protections
Ethernet port surge protection
4 KV
Power supply surge protection
Line-GND: 2 KV
Line-Line: 1 KV
Ethernet port ESD protection (air/contact)
8 KV/6 KV
Environmental Specifications
Operating
Temperature: -20°C to 50°C/-4°F to 122°F
Humidity: 10% to 95% (non-condensing)
Storage
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 10% to 95% (non-condensing)
MTBF (hr)
786,686
Heat dissipation (BTU/hr)
264.782
Acoustic noise @ 25°C (min/max, dBA)
23.9/48.8
| Gyártó | ZYXEL |
| Menedzselhető | Van |
| Menedzselhetőség | Teljes |
| Port típusa | 1Gb Réz |
| Portok száma | 28 |
| Rack-be szerelhető | Van |
| SFP port | 4 |
| Switch típus | Modular |
