Leírás és Paraméterek
Wireless
Standard
IEEE802.11 ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4GHz: 575 Mbps
5GHz: 2400 Mbps
Frequency band
2.4 GHz:
USA (FCC): 2.412 to 2.462 GHz
Europe (ETSI): 2.412 to 2.472 GHz
5 GHz:
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz
European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth
20-, 40- ,80- and 160-MHz
Conducted typical transmit output power*1
US (2.4GHz/5GHz):
23/23 dBm
EU (2.4GHz/5GHz):
19/23 dBm
RF Design
Antenna type
Internal Antenna
Antenna gain
2.4 GHz: 3 dBi, 2X2:2SS
5 GHz: 4 dBi, 2x2:2SS
Minimum receive sensitivity
Min. Rx sensitivity up to -99 dBm
WLAN Feature
Band steering
Yes
WDS/Mesh*2
Yes
Fast roaming
Pre-authentication, PMK caching and 802.11r/k/v
DCS
Yes
Load balancing
No
Advanced Cellular Coexistence
Yes
Security
Encryption
WPA
WPA2
WPA3
Authentication
IEEE 802.1X
RADIUS anthentication
Access management
L2-isolation
MAC filtering
Rogue AP detection
Networking
IPv6
Yes
VLANs
Yes
WMM
Yes
U-APSD
Yes
Management
Operating mode
Nebula cloud managed
Controller-managed
Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways
Centralized and batch configurations:
IP configuration
IP renew
Device reboot
Device locating
Web GUI access
Firmware upgrade
Password configuration
Web UI/CLI
Yes
SNMP
No
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.)
173 x 97 x 29 / 6.81 x 3.82 x 1.14
Weight (g/lb.)
310/0.68
Packing
Dimensions (WxDxH)(mm/in.)
195 x 120 x 53 / 7.68 x 4.72 x 2.09
Weight (g/lb.)
483/1.06
Included accessories
Multi-purpose mounting bracket with screws
Optional accessories (Sold separately)
WAC500H-DMNT10F: Desktop mount Kit (10 sets)
MTBF (hr)
750,816

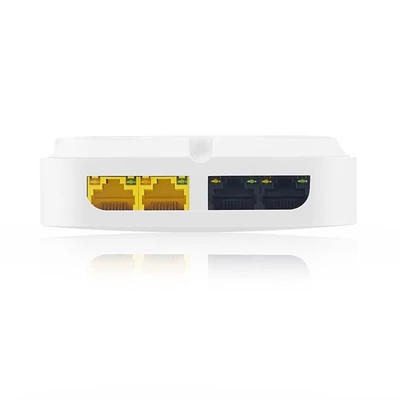

Physical Interfaces
Ethernet port
1x 10/100/1000M uplink
3x 10/100/1000M downlink(including one PoE PSE)
Power
PoE (802.3at): power draw 19 W(include 5W for PoE PSE)
PoE modes
IEEE802.3af: Not supported
IEEE802.3at: Unrestricted
IEEE802.3bt: -
Environmental Specifications
Operating
Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 90% (non-condensing)
Storage
Temperature
-40°C to 70°C/-40°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
FCC Part 15C
FCC Part 15E
ETSI EN 300 328
EN 301 893
LP0002
EN 60601-1-2
EMC
FCC Part 15B
EN 301 489-1
EN 301 489-17
EN55022
EN55024
EN61000-3-2/-3
BSMI CNS13438
Safety
EN 60950-1
IEC 60950-1
BSMI CNS14336-1
| Frekvencia | 2,4 GHz és 5 GHz |
| Gyártó | ZYXEL |
| Kivitel | Nincs |
| Sebesség | 2400Mbps |
| Szabvány | 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax |
